Nancome 200kwh Transportable EV Charging System Integrated Energy Storage
Nancome 200kwh Transportable EV Charging System Integrated Energy Storage
Nancome 200kwh Transportable EV Charging System Integrated Energy Storage
Nancome 200kwh Transportable EV Charging System Integrated Energy Storage
Nancome 200kwh Transportable EV Charging System Integrated Energy Storage
1 / 5
Nancome 200kwh Transportable EV Charging System Integrated Energy Storage
Nancome 200kwh Transportable EV Charging System Integrated Energy Storage
Nancome 200kwh Transportable EV Charging System Integrated Energy Storage
Nancome 200kwh Transportable EV Charging System Integrated Energy Storage
Nancome 200kwh Transportable EV Charging System Integrated Energy Storage

Nancome 200kwh Transportable EV Charging System Integrated Energy Storage

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
NCBCS01
Location
Public Use
Interfaces
One Pile with One Charge
Storage Energy
26-200kwh LiFePO4
Output Power
20kw-180kw Constant Power
Output Voltage
DC200V-1000V
Output Current
0-250A
IP Grade
IP54
Working Temp.
-10°C~+60°C
Warranty
24 Months
⚙️ Product Parameters
Storage energy 11.5-200kwh lifepo4 Output power 20KW-180KW Constant power
Output voltage DC200V-1000V Output current 0-250A
Charging gun cable 7 meter Screen display 7/10 inch display
Charge mode By hand/OCPP IP grade IP54
📦 Product Overview & Gallery
EV Charging System Integrated Energy Storage
EV Charging System Details

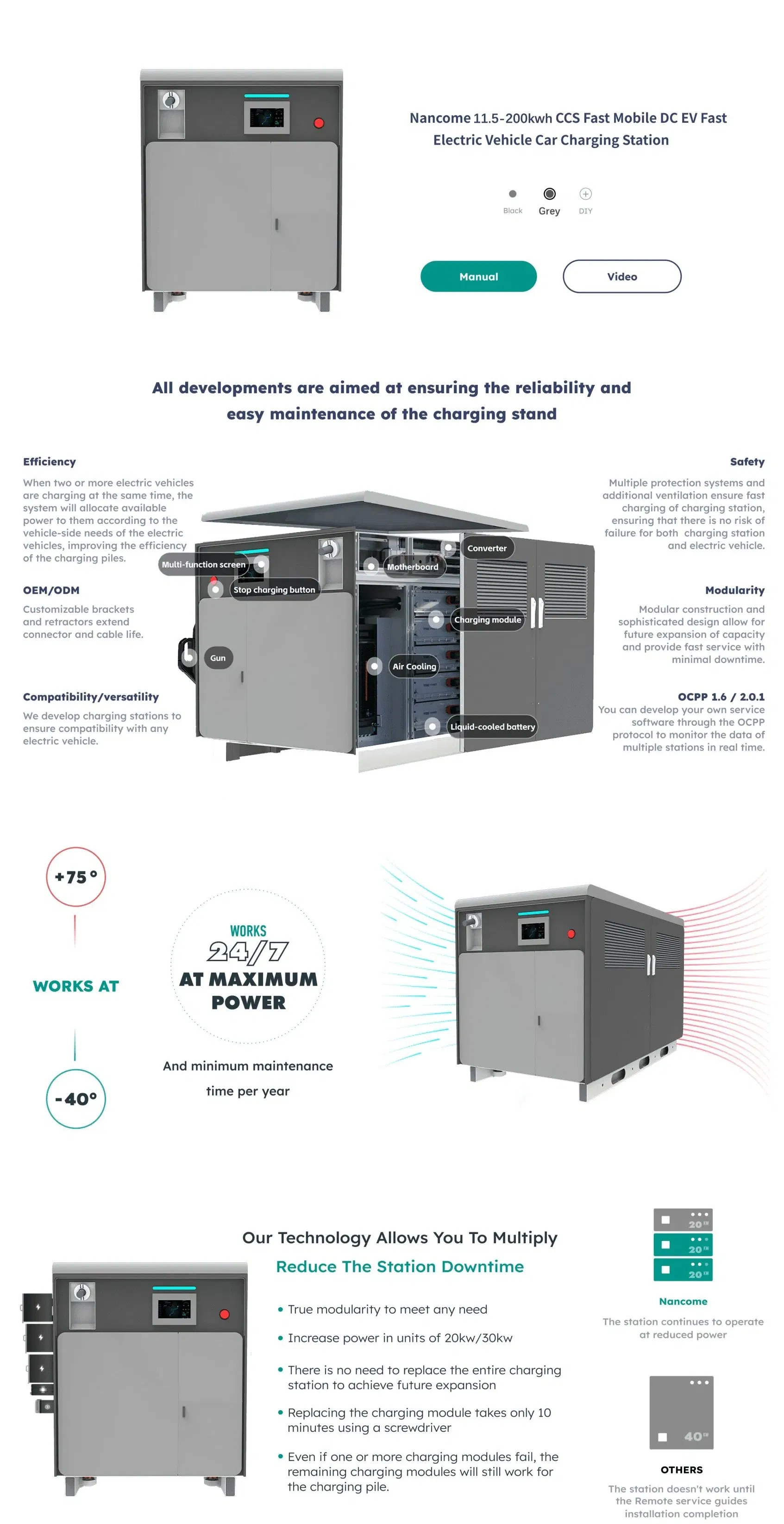

Energy Storage System Specifications

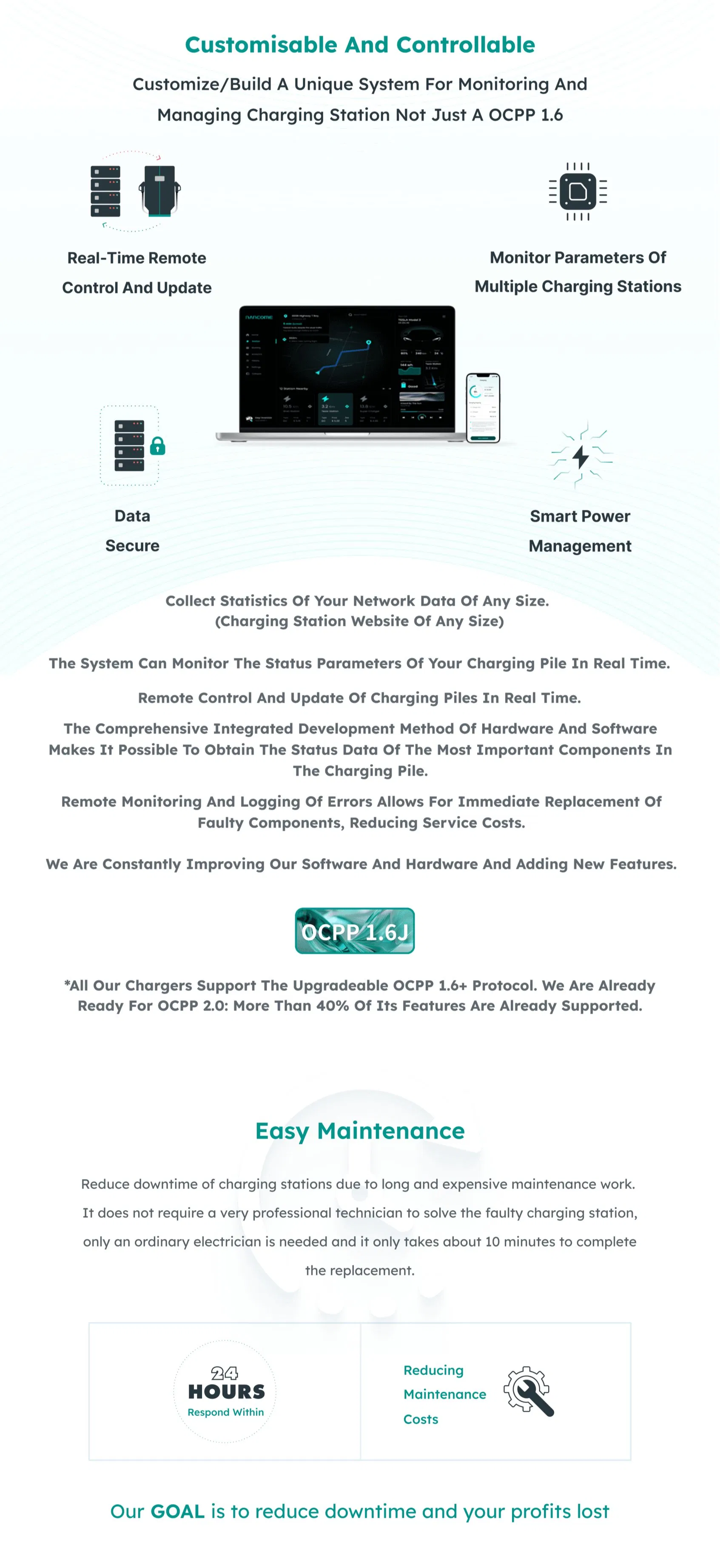

Charging Station Technical Specs
❓ Frequently Asked Questions
What charging interfaces are compatible with this system?
The system is compatible with CCS1, CCS2, GB/T, and CHAdeMO, supporting most mainstream EVs worldwide.
How does the system respond to grid instability or power outages?
It is equipped with energy storage and backup capabilities. It automatically switches power sources during outages to ensure continuous operation.
Is the system suitable for extreme outdoor environments?
Yes, the devices offer up to IP65 protection level and are tested for temperatures ranging from -20°C to 55°C, making them suitable for heat, cold, dust, and humidity.
Can the system be monitored remotely?
Yes, the system supports cloud-based platforms, enabling real-time monitoring, remote diagnostics, and instant alerts.
Does the storage system help in reducing electricity costs?
Absolutely. It supports peak-shaving and valley-filling strategies to reduce power bills by utilizing stored energy during peak rate periods.
What is the expected service life of the charging and storage units?
The system lifespan is approximately 8–10 years. The storage batteries support over 3000+ cycles, offering long maintenance intervals.
