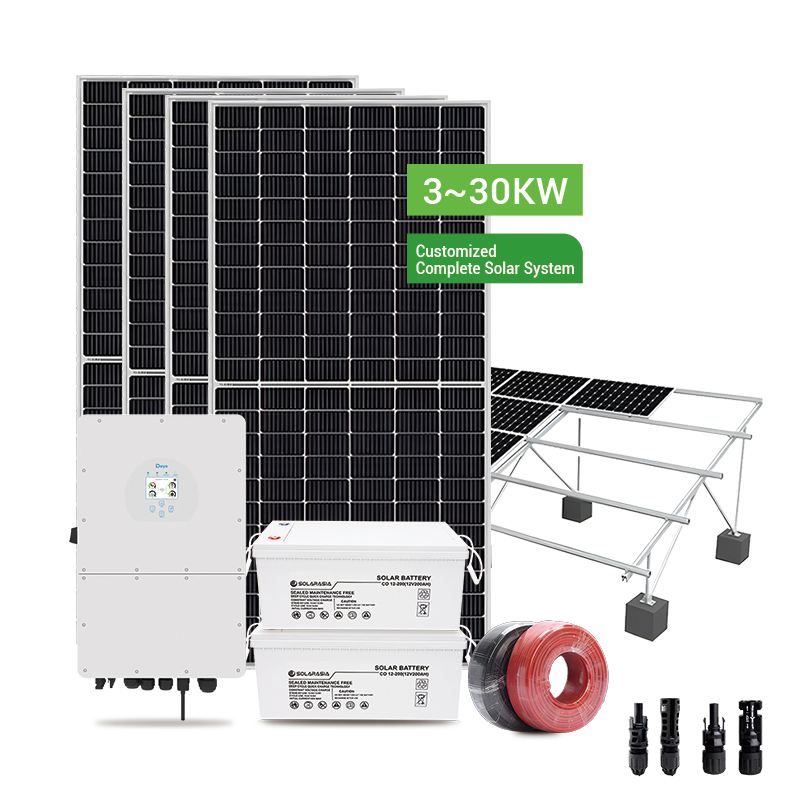

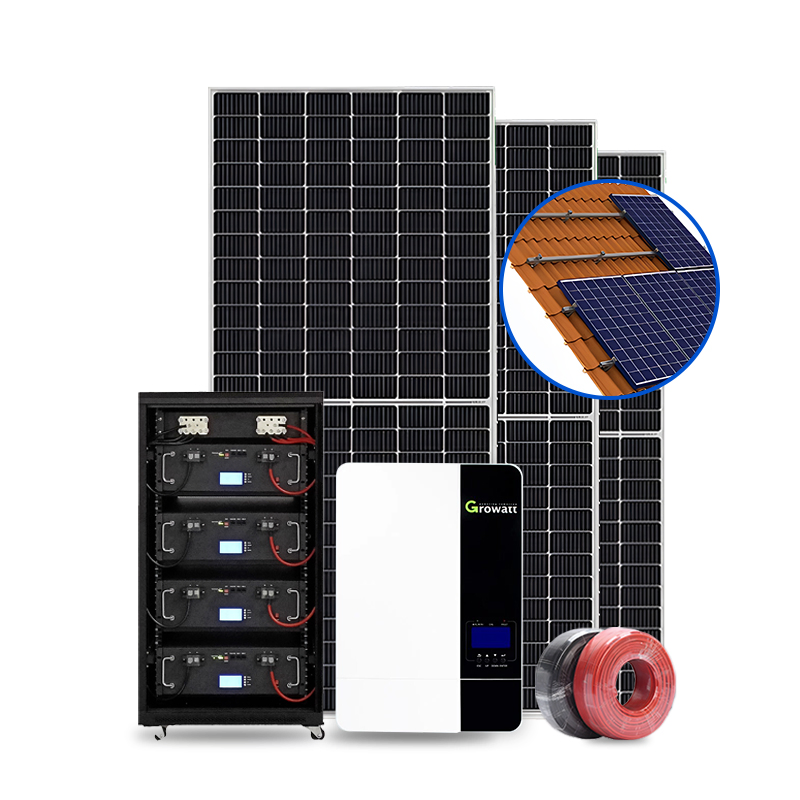

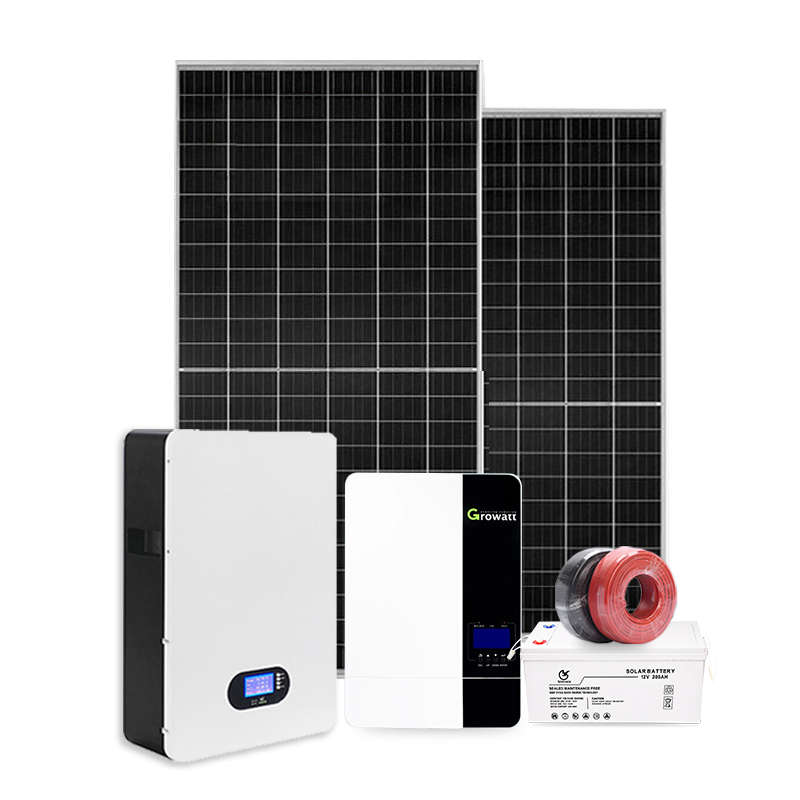

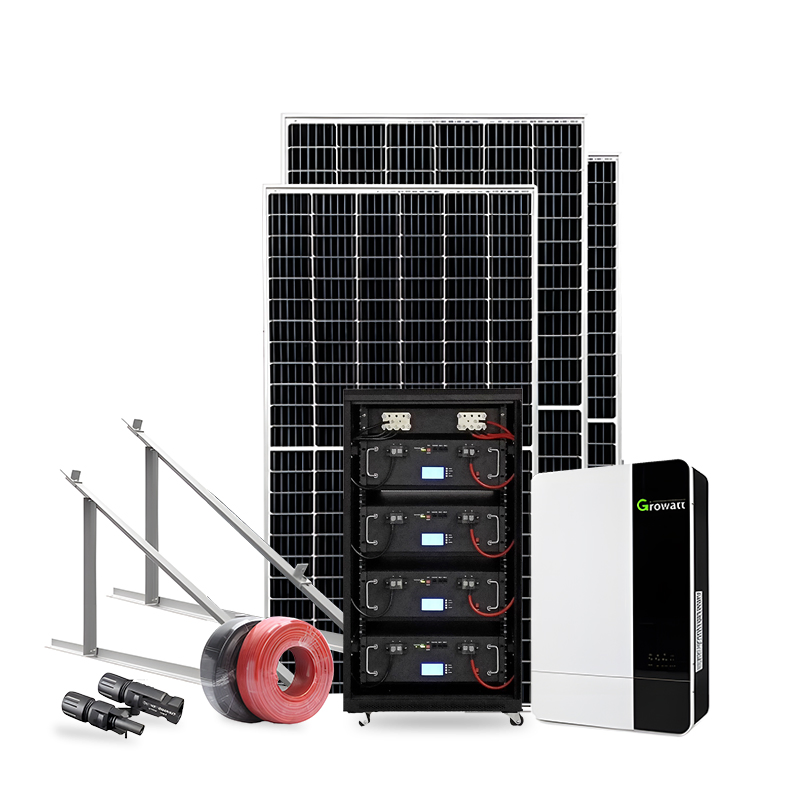

Solarasia 15kw 30kw Complete Solar Kit System off Grid Solar Energy Power System All in One 5kw 10kw 15kw 20kw with Lithium Battery for Home Backup Power
Solarasia 15kw 30kw Complete Solar Kit System off Grid Solar Energy Power System All in One 5kw 10kw 15kw 20kw with Lithium Battery for Home Backup Power
Solarasia 15kw 30kw Complete Solar Kit System off Grid Solar Energy Power System All in One 5kw 10kw 15kw 20kw with Lithium Battery for Home Backup Power
Solarasia 15kw 30kw Complete Solar Kit System off Grid Solar Energy Power System All in One 5kw 10kw 15kw 20kw with Lithium Battery for Home Backup Power
Solarasia 15kw 30kw Complete Solar Kit System off Grid Solar Energy Power System All in One 5kw 10kw 15kw 20kw with Lithium Battery for Home Backup Power
1 / 5
Solarasia 15kw 30kw Complete Solar Kit System off Grid Solar Energy Power System All in One 5kw 10kw 15kw 20kw with Lithium Battery for Home Backup Power
Solarasia 15kw 30kw Complete Solar Kit System off Grid Solar Energy Power System All in One 5kw 10kw 15kw 20kw with Lithium Battery for Home Backup Power
Solarasia 15kw 30kw Complete Solar Kit System off Grid Solar Energy Power System All in One 5kw 10kw 15kw 20kw with Lithium Battery for Home Backup Power
Solarasia 15kw 30kw Complete Solar Kit System off Grid Solar Energy Power System All in One 5kw 10kw 15kw 20kw with Lithium Battery for Home Backup Power
Solarasia 15kw 30kw Complete Solar Kit System off Grid Solar Energy Power System All in One 5kw 10kw 15kw 20kw with Lithium Battery for Home Backup Power

Solarasia 15kw 30kw Complete Solar Kit System off Grid Solar Energy Power System All in One 5kw 10kw 15kw 20kw with Lithium Battery for Home Backup Power

Customization: Available
After-sales Service: 2 Years Warranty
Warranty: 2 Years Warranty
Send Inquiry

Product Description

Basic Information
Model NO.
off grid system
Certification
CE
Application
Home, Industrial, Commercial
Inverter
Growatt
Input Voltage
48V
Standard Voltage
230/220V
Communication
RS485 & WiFi
MPPT
Yes
Package Size
675.00cm * 560.00cm * 330.00cm
Gross Weight
66.000kg
Product Description
Solar Energy Power System
Product Parameters
15KW & 30KW Off Grid Solar Power System
Item Model Description Quantity (15k/30k)
1 Solar Panel Mono half cell 550W (IEC 61215 & 61730) 28pcs / 54pcs
2 Combiner Box 2 input 1 output 3pc / 6pc
3 Off Inverter 5000ES parallel 3pc / 6pc
4 Battery Lithium 10kWh (51.2V 200AH) 2pc / 3pc
5 Support Roof/Ground Mounting 6set / 1set
Detailed Specifications

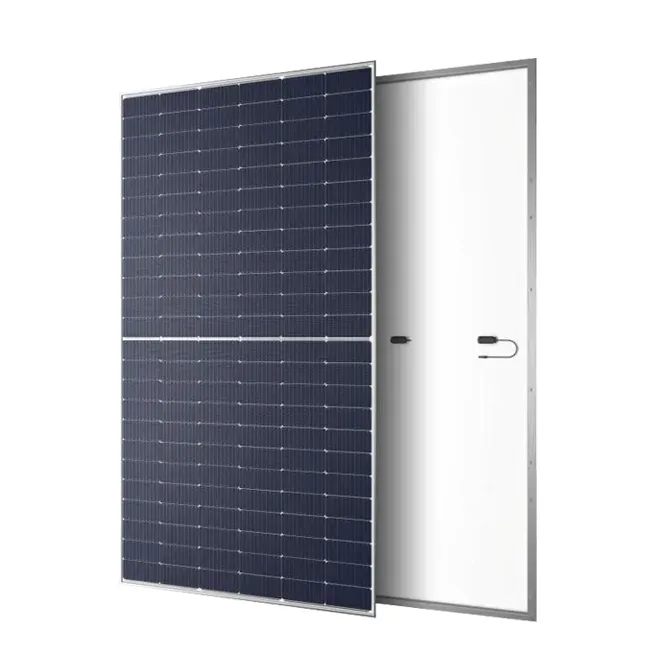

Solar Panel Details
  • Open Circuit Voltage-Voc (V): 49.9V
  • Short- Circuit Current-Isc (A): 14.0A
  • Voltage at Pmax-Vmp (V): 41.96V
  • Current at Pmax-Imp (A): 13.11A
  • IP68 Junction Box & Multi Busbar Technology
  • Reduced Hot Spot Loss & Longer Life-time
  • Integrated MPPT charge controller
  • Maximum PV input voltage up to 450VDC
  • Optional WIFI/ GPRS remote monitoring
  • Support parallel operation up to 30kW
  • Flexible schedule for charging/discharging
  • Work with or without battery

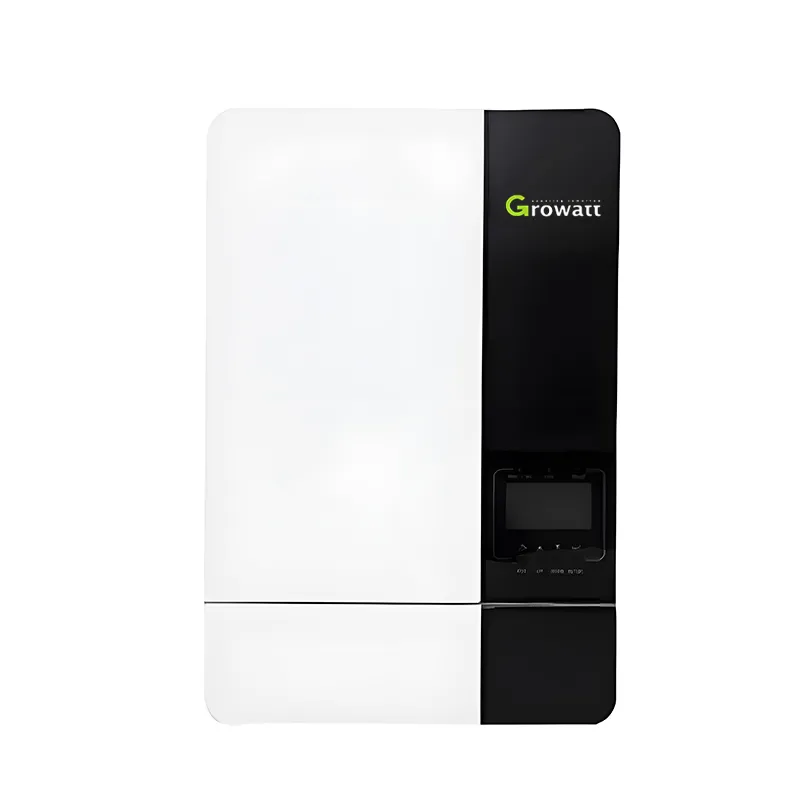

Inverter Features

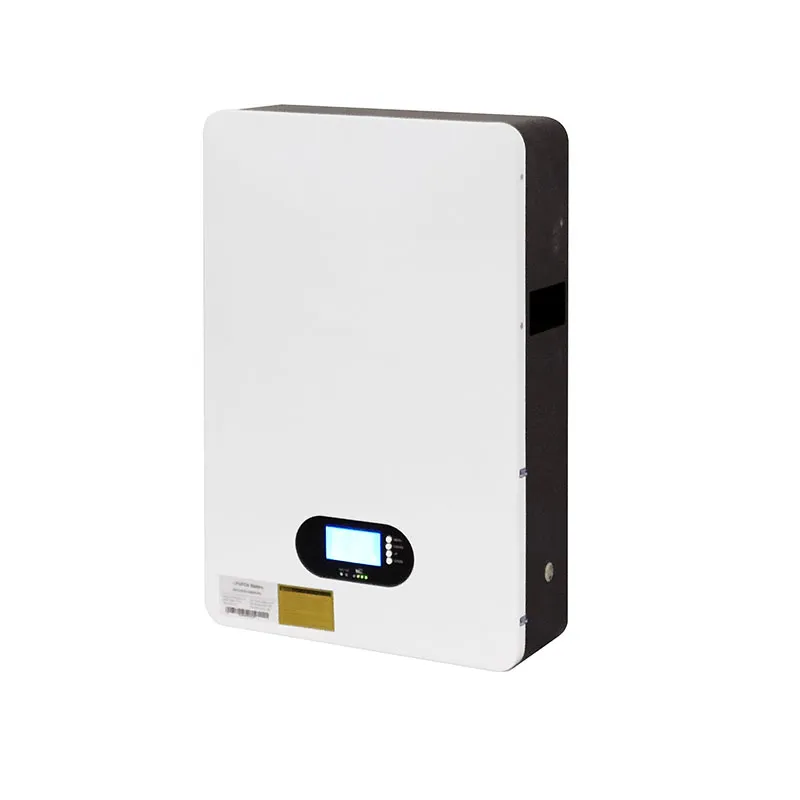

Battery Details
  • Continuous discharge current: 100A
  • Supports max 15 parallel groups
  • Charging voltage: 54.75V
  • Discharge cut-off voltage: 43.5V
  • Increase BMS with 200A current
  • Metal housing with key display
Certifications & Shipping
Certification

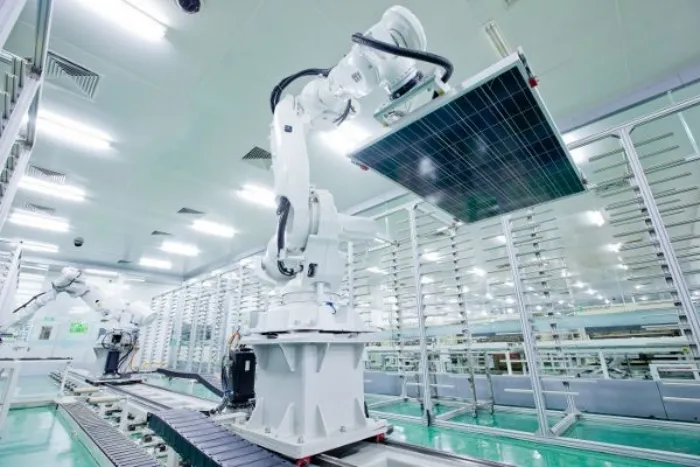

Packaging 1

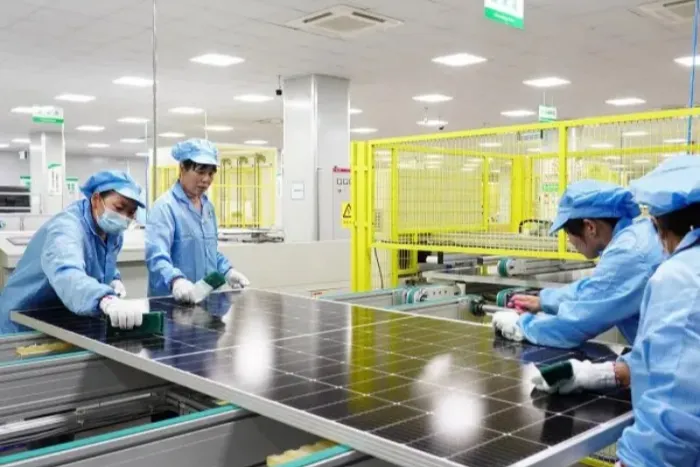

Packaging 2

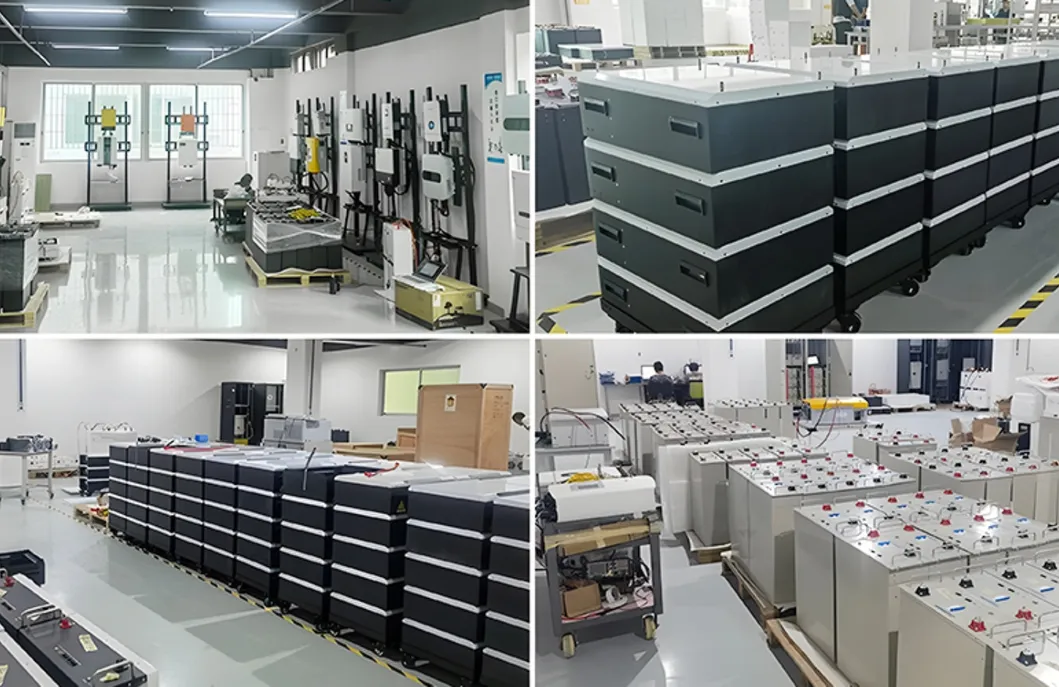

Shipping 1
Shipping 2
Production Capacity
Factory
Workshop
Frequently Asked Questions
How to choose the right system?
Please inform us about the type of energy storage system required, the capacity of the PV project installation, the installation scenario, and the arrangement of components.
How about the delivery time?
Delivery time ranges from 7 to 20 days for bulk orders.
What is the warranty for the solar system?
Solar panels have a 25-year warranty. On-grid and hybrid inverters come with a 5-year warranty, while Growatt off-grid inverters have a 2-year warranty.
How can I get better technical support?
Our professional engineer team provides support based on your requirements. We offer 24-hour online service to solve any issues within 1 hour.
Is the system compatible with different battery types?
Yes, the system is designed to work with both Lithium batteries and Lead Acid batteries, providing flexibility for your specific storage needs.
Can the system operate without a battery?
Yes, the integrated inverter functionality allows the system to work either with a battery or without a battery depending on your configuration.
